MTS Criterion Electromechanical Load Frame
|
|
|
|
|
Recommended service to be performed at each running time interval noted
|
|
|
|
Calendar Time Using 8 Hour Run Time Rate Per Day
|
Daily
|
Weekly
|
Annually
|
|
Running Time - Hours
|
8
|
40
|
2,000
|
|
Shunt Cal Check
|
X
|
|
|
|
Clean Work Area / Machine Surface
|
X
|
|
|
|
Verify Limits and E-Stop
|
|
X
|
|
|
Inspect Cable / Connections
|
|
X
|
|
|
PC Maintenance
|
|
|
|
|
Back up Testing Software Files (*.reg/cal files)
|
|
|
MTS
|
|
HD Defragmentation
|
|
|
MTS
|
|
System Inspection
|
|
|
|
|
Check / Adjust Drive Belt Tension
|
|
|
MTS
|
|
Inpect Drive Belts for Excessive Wear
|
|
|
MTS
|
|
Inspect Cable Connections
|
|
|
MTS
|
|
System Checks
|
|
|
|
|
Check E-Stop
|
|
|
MTS
|
|
Check Upper Limit
|
|
|
MTS
|
|
Check Lower Limit
|
|
|
MTS
|
|
Check Load Cal / Shunt Cal
|
|
|
MTS
|
|
Lubrication
|
|
|
|
|
Crosshead / Ball Screw
|
|
|
MTS
|
|
Guide Column Zerk Fittings
|
|
|
MTS
|
|
Drivetrain Bearings (if applicable)
|
|
|
MTS
|
|
Frame and Work Area
|
|
|
|
|
Clean Frame and Work Area
|
|
|
MTS
|
|
|
|
|
|
|
Note: MTS
|
|
|
|
|
Symbol denotes service performed by trained field service engineers as part of an MTS Routine Maintenance plan. Some of these procedures require special service tools and/or specific service training to complete.
|
|
Note: X
|
|
|
|
|
Symbol denotes services performed by equipment operators. Most of these procedures involve visual checks that should not interfere with test system operation. These checks are also completed by trained field service engineers on each Routine Maintenance visit.
|
|
|
|
|
|
|

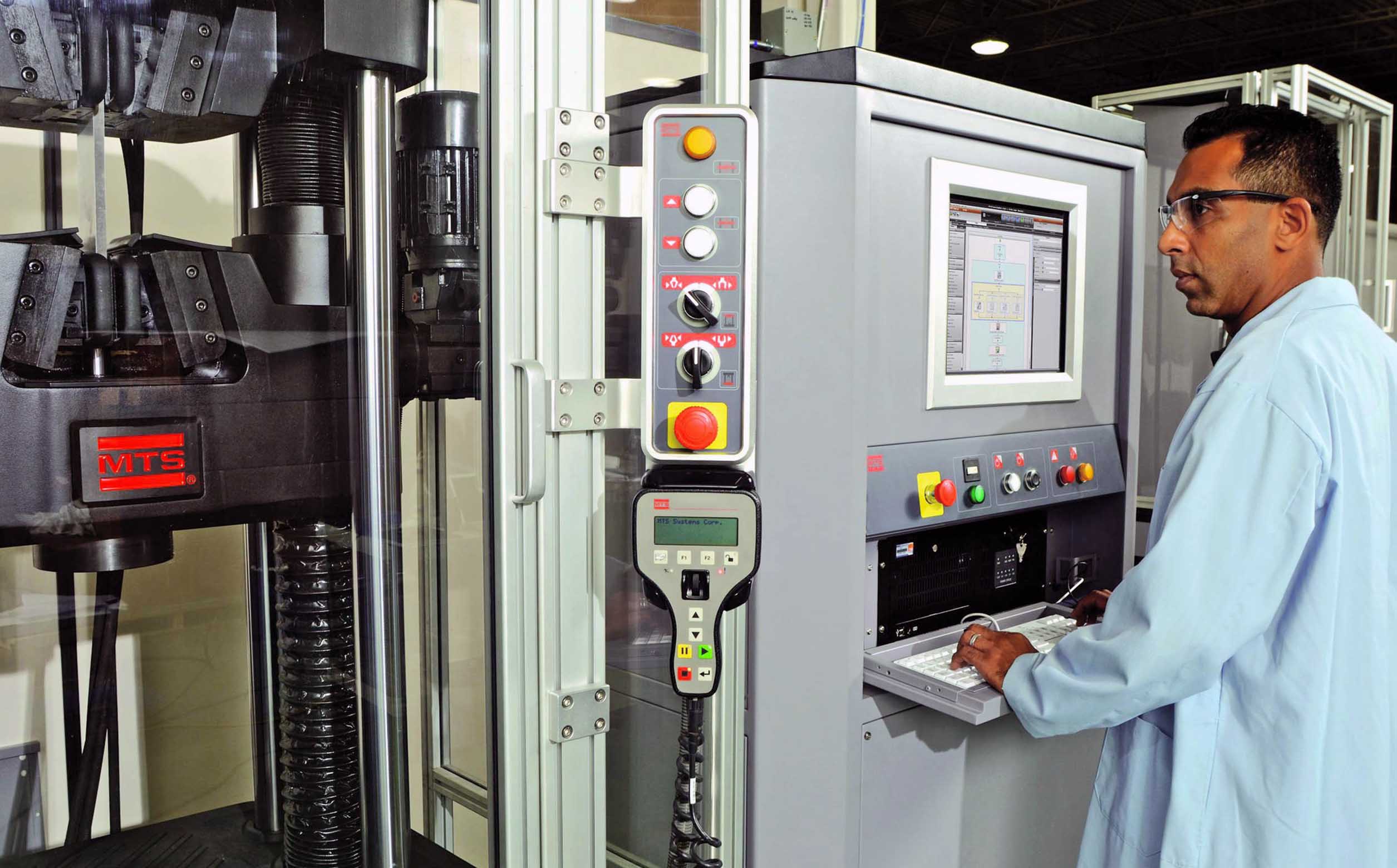

MTS Criterion Static-Hydraulic Load Frame
|
|
|
|
|
Recommended service to be performed at each running time interval noted
|
|
|
|
Calendar Time Using 8 Hour Run Time Rate Per Day
|
Daily
|
Weekly
|
Annually
|
|
Running Time - Hours
|
8
|
40
|
2,000
|
|
Shunt Cal Check
|
X
|
|
|
|
Clean Work Area / Machine Surface / Jaw
|
X
|
|
|
|
Verify Limits and E-Stop
|
|
X
|
|
|
Inspect Cable / Connections
|
|
X
|
|
|
PC Maintenance
|
|
|
|
|
Back up Testing Software Files (*.reg/cal files)
|
|
|
MTS
|
|
HD Defragmentation
|
|
|
MTS
|
|
System Inspection
|
|
|
|
|
Inspect / Clean Controller
|
|
|
MTS
|
|
Inspect Cable Connections
|
|
|
MTS
|
|
System Checks
|
|
|
|
|
Check E-Stop
|
|
|
MTS
|
|
Check Piston Travel Limit
|
|
|
MTS
|
|
Check Crosshead Upper Limit
|
|
|
MTS
|
|
Check Crosshead Lower Limit
|
|
|
MTS
|
|
Check Load Cal / Shunt Cal
|
|
|
MTS
|
|
Check Load Cal / Shunt Cal
|
|
|
MTS
|
|
Lubrication
|
|
|
|
|
Cushion Plates and Wearable Plates of the Grip
|
|
|
MTS
|
|
Driven Parts of Lower Crosshead
|
|
|
MTS
|
|
Frame and Work Area
|
|
|
|
|
Clean / Replace Air Filter
|
|
|
MTS
|
|
Clean / Replace Suction Filter
|
|
|
MTS
|
|
Clean / Replace High-pressure Line Filter
|
|
|
MTS
|
|
|
|
|
|
|
Note: MTS
|
|
|
|
|
Symbol denotes service performed by trained field service engineers as part of an MTS Routine Maintenance plan. Some of these procedures require special service tools and/or specific service training to complete.
|
|
Note: X
|
|
|
|
|
Symbol denotes services performed by equipment operators. Most of these procedures involve visual checks that should not interfere with test system operation. These checks are also completed by trained field service engineers on each Routine Maintenance visit.
|
