完整产品信息
- 压盘以钢为材料制成，经济实用，可用于泡沫材料、复合材料、瓶子和塑料容器的压缩测试
- 有多种直径可供选择，额定载荷值分为 20 kN、100 kN 和 300 kN
- 硬化的压盘表面经过精密磨削处理，提高了压盘的耐久性能
- 样件定心槽、防旋转功能和集成式对中销能帮助提高测试的准确度和可重复性
|
型号 |
类型 |
载荷 |
重量 |
样件 |
兼容框架 |
温度额定值 |
附件 |
压盘/高度 |

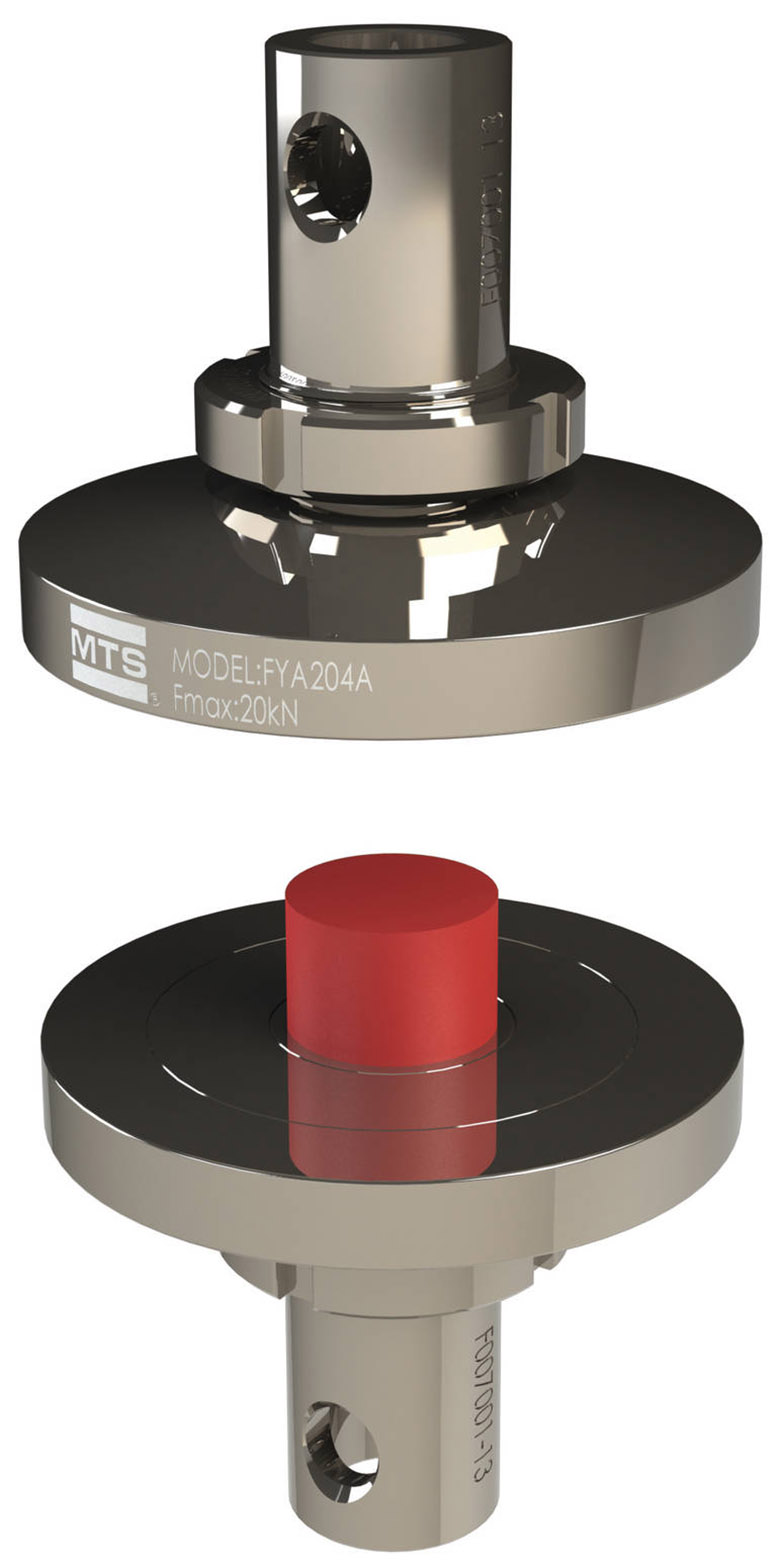

| FYA204A |
钢制压盘 |
20 kN |
0.149 kg |
φ100 mm |
C42.503 |
-50° C (-58° F) 至 |
D |
高度 |
|
|
|
|
|
|
C43.104 |
150° C (302° F) |
|
63 mm |
|
|
|
|
|
|
C43.304 |
|
|
(2.480 in) |
|
|
|
|
|
|
C43.504 |
|
|
|
|
|
|
|
|
|
C44.104 |
|
|
直径 |
|
|
|
|
|
|
C44.304 |
|
|
100 mm |
|
|
|
|
|
|
C45.504 |
|
|
(3.937 in) |
|
|
|
|
|
|
C45.105 |
|
|
|

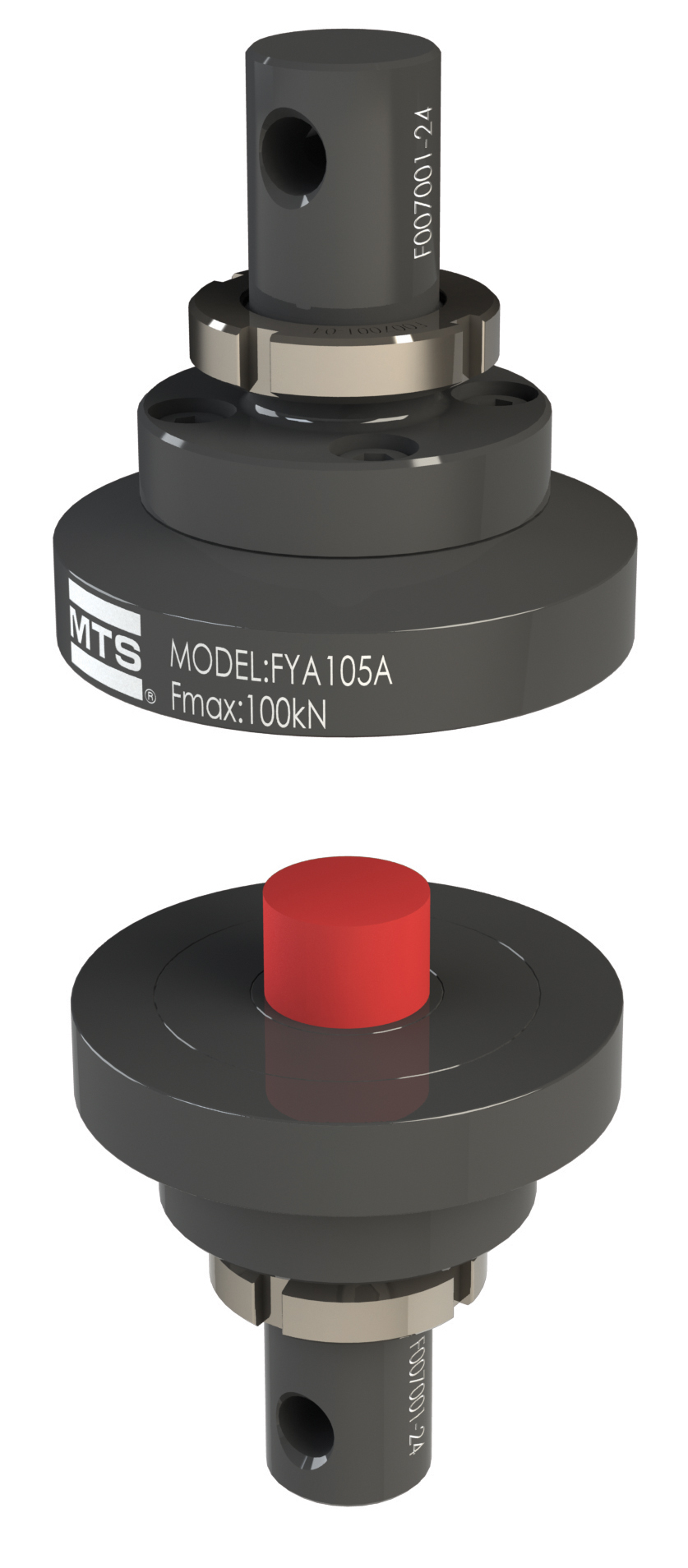

| FYA105A |
钢制压盘 |
100 kN |
2.434 kg |
φ100 mm |
C43.104 |
-50° C (-58° F) 至 |
D |
高度 |
| C43.304 |
150° C (302° F) |
86 mm |
||||||
| C43.504 |
(3.386 in) |
|||||||
| C44.104 |
||||||||
| C44.304 |
直径 |
|||||||
| C45.504 |
100 mm |
|||||||
| C45.105 |
(3.937 in) |
|||||||
| FYA305A |
钢制压盘 |
300 kN |
4.2 kg |
φ100 mm |
C45.305 |
-50° C (-58° F) 至 |
E |
高度 |
|
|
|
|
|
|
|
150° C (302° F) |
|
98 mm |
|
|
|
|
|
|
|
|
|
(3.86 in) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
直径 |
|
|
|
|
|
|
|
|
|
100 mm |
|
|
|
|
|
|
|
|
|
(3.94 in) |

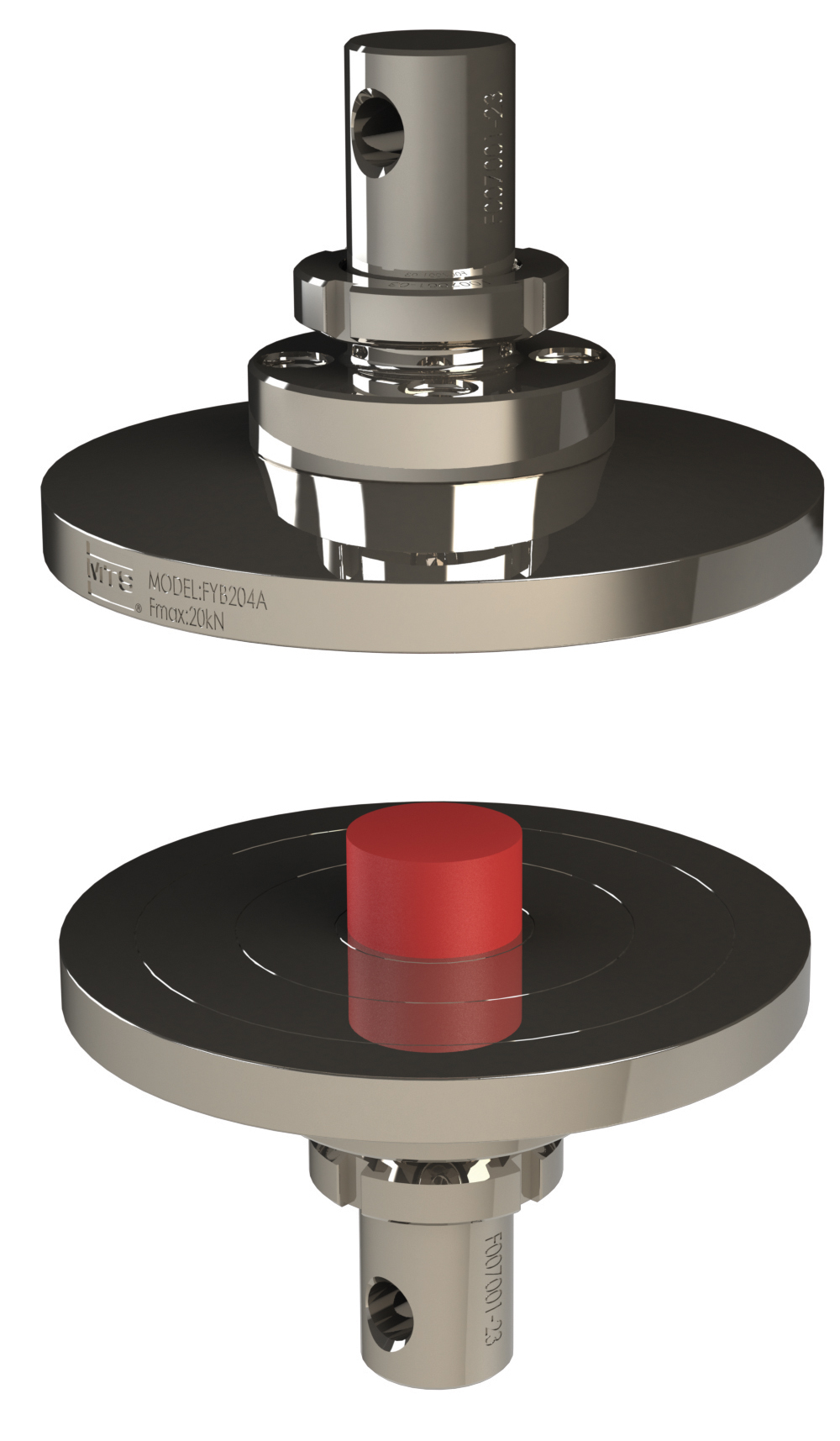

| FYB204A |
钢制压盘 |
20 kN |
3.433 kg |
φ150 mm |
C42.503 |
-50° C (-58° F) 至 |
D |
高度 |
| C43.104 |
150° C (302° F) |
81 mm |
||||||
| C43.304 |
(3.386 in) |
|||||||
| C43.504 |
||||||||
| C44.104 |
直径 |
|||||||
| C44.304 |
150 mm |
|||||||
| C45.504 |
(5.906 in) |
|||||||
| C45.105 |
||||||||

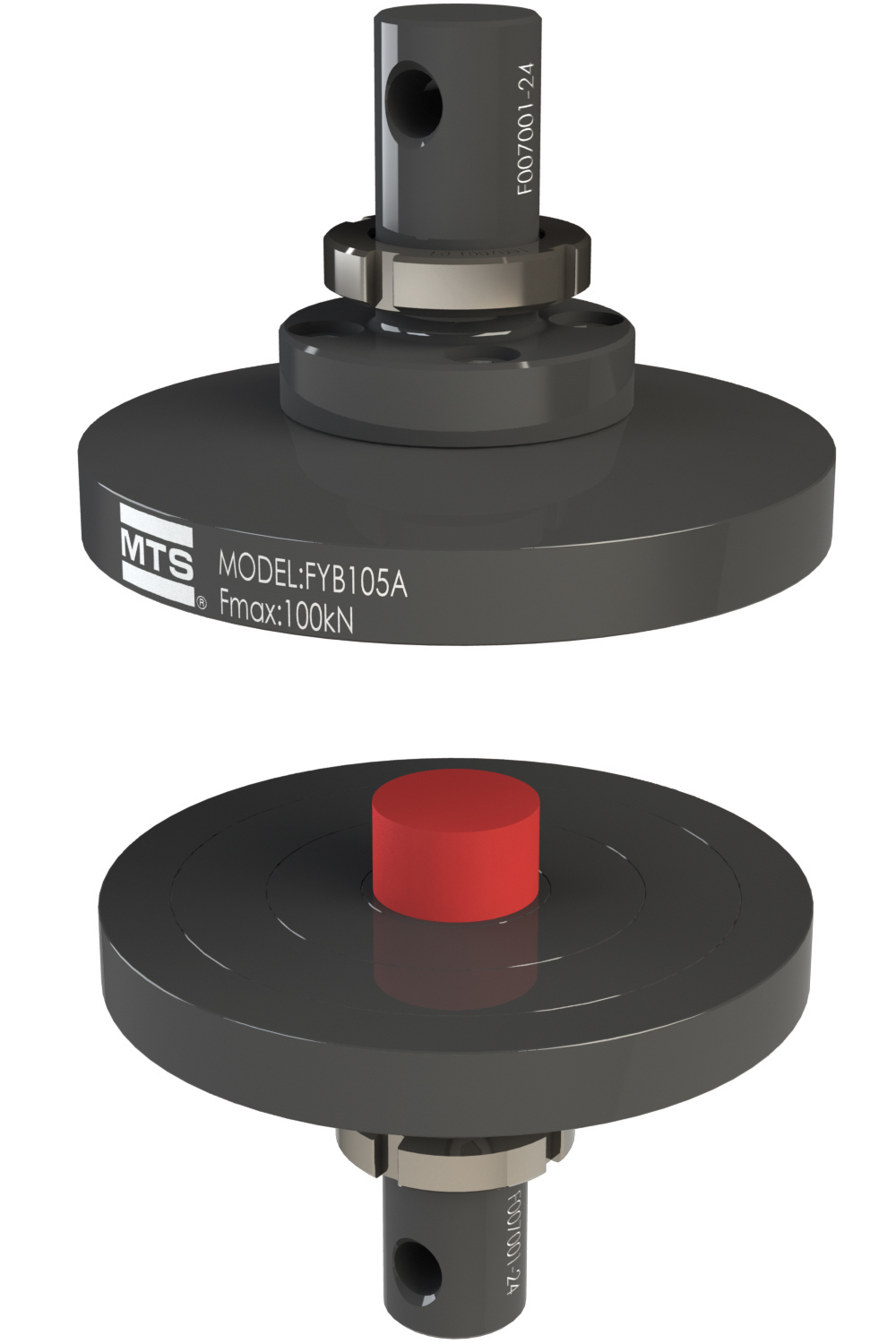

| FYB105A |
钢制压盘 |
100 kN |
4.181 kg |
φ150 mm |
C43.104 |
-50° C (-58° F) 至 |
D |
高度 |
|
|
|
|
|
|
C43.304 |
150° C (302° F) |
|
86 mm |
|
|
|
|
|
|
C43.504 |
|
|
(3.386 in) |
|
|
|
|
|
|
C44.104 |
|
|
|
|
|
|
|
|
|
C44.304 |
|
|
直径 |
|
|
|
|
|
|
C45.504 |
|
|
100 mm |
|
|
|
|
|
|
C45.105 |
|
|
(3.937 in) |
| FYB305A |
钢制压盘 |
300 kN |
8.9 kg |
φ150 mm |
C45.305 |
-50° C (-58° F) 至 |
E |
高度 |
| 150° C (302° F) |
125 mm |
|||||||
| (4.92 in) |
||||||||
| 直径 |
||||||||
| 150 mm |
||||||||
| 5.91 in) |
||||||||

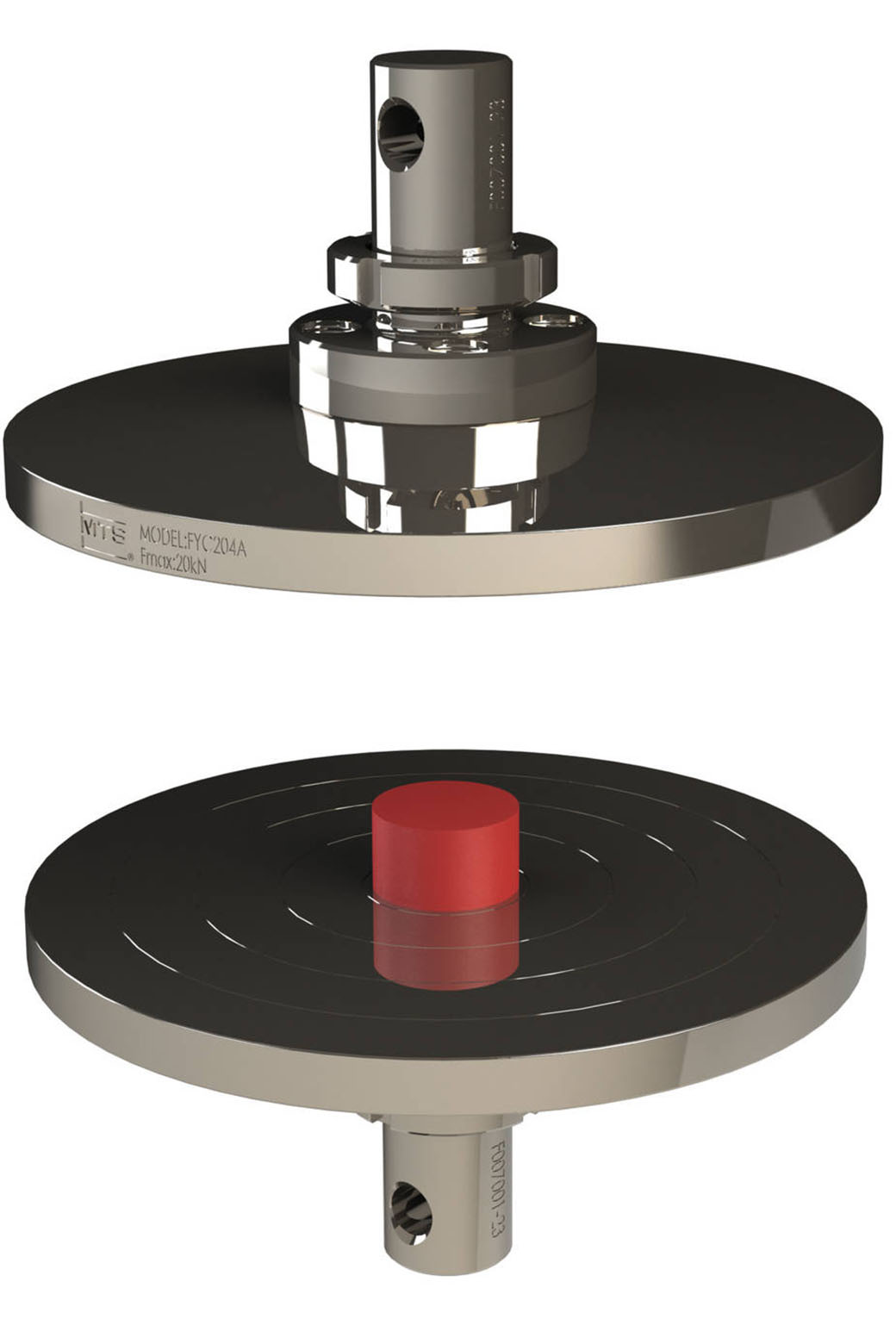

| FYC204A |
钢制压盘 |
20 kN |
5.305 kg |
φ200 mm |
C42.503 |
-50° C (-58° F) 至 |
D |
高度 |
|
|
|
|
|
|
C43.104 |
150° C (302° F) |
|
81 mm |
|
|
|
|
|
|
C43.304 |
|
|
(3.189 in) |
|
|
|
|
|
|
C43.504 |
|
|
|
|
|
|
|
|
|
C44.104 |
|
|
|
|
|
|
|
|
|
C44.304 |
|
|
直径 |
|
|
|
|
|
|
C45.504 |
|
|
200 mm |
|
|
|
|
|
|
C45.105 |
|
|
(7.874 in) |

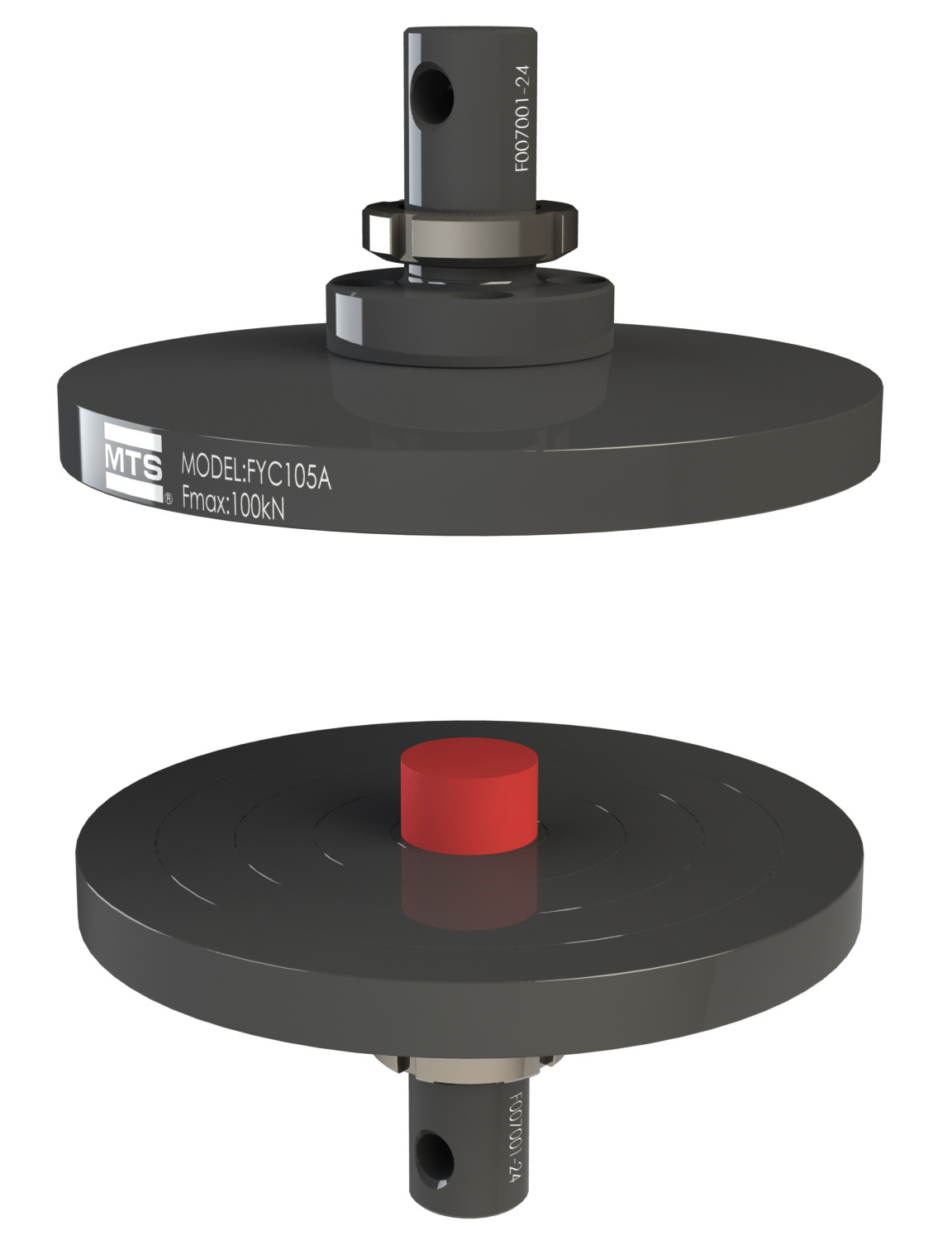

| FYC105A |
钢制压盘 |
100 kN |
6.637 kg |
φ200 mm |
C43.104 |
-50° C (-58° F) 至 |
D |
高度 |
| C43.304 |
150° C (302° F) |
86 mm |
||||||
| C43.504 |
(3.386 in |
|||||||
| C44.104 |
||||||||
| C44.304 |
直径 |
|||||||
| C45.504 |
200 mm |
|||||||
| C45.105 |
(7.874 in) |
|||||||
| FYC305A |
钢制压盘 |
300 kN |
12 kg |
φ200 mm |
C45.305 |
-50° C (-58° F) 至 |
E |
高度 |
|
|
|
|
|
|
|
150° C (302° F) |
|
125 mm |
|
|
|
|
|
|
|
|
|
(4.92 in) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
直径 |
|
|
|
|
|
|
|
|
|
200 mm |
|
|
|
|
|
|
|
|
|
(7.87 in) |

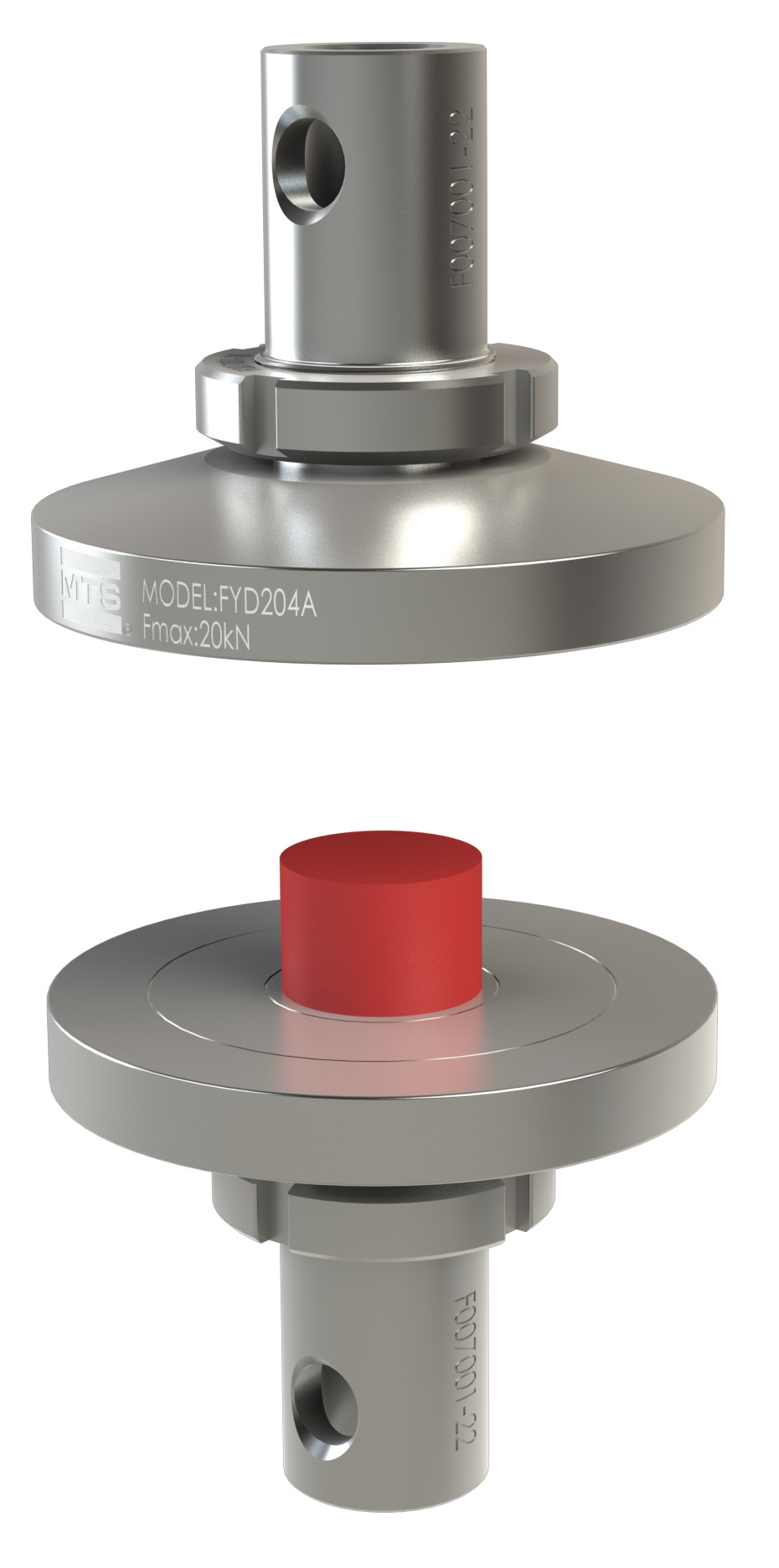

| FYD204A |
不锈钢压盘 |
20 kN |
1.501 kg |
φ100 mm |
C44.104 |
-70° C (-94° F) 至 |
D |
高度 |
| C44.304 |
350° C (662° F) |
63 mm |
||||||
| C45.504 |
(2.480 in) |
|||||||
| C45.105 |
||||||||
| 直径 |
||||||||
| 100 mm |
||||||||
| (3.937 in) |
||||||||
| FYD105A |
不锈钢压盘 |
100 kN |
5.03 kg |
φ150 mm |
C43.104 |
0° C (32° F) 至 |
D |
高度 |
|
|
|
|
|
|
C43.304 |
50° C (122° F) |
|
100 mm |
|
|
|
|
|
|
C43.504 |
|
|
(3.94 in) |
|
|
|
|
|
|
C44.104 |
|
|
|
|
|
|
|
|
|
C44.304 |
|
|
直径 |
|
|
|
|
|
|
C45.504 |
|
|
150 mm |
|
|
|
|
|
|
C45.105 |
|
|
(5.91 in) |
